CA60
NZ$203.00*
Order
Automotive Version:
NZ$217.00*
Order
CA600
NZ$203.00*
Order
Automotive Version:
NZ$273.00*
Order
CA1000
NZ$89.00*
Order
*15% GST applicable
for sales within NZ
Extend the versatility of your multimeter
Three options to choose from in AC only or AC/DC
Use on the mV range of your meter
Each has a fixed curly cord & 4mm banana connectors†

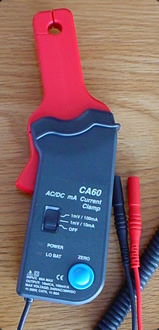

CA60 AC/DC Clamp Adaptor
†
Easy push-button Zero Set

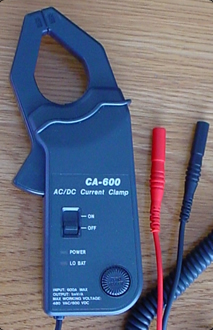

CA600 AC/DC Clamp Adaptor
†
Good choice for automotive
starter motor current

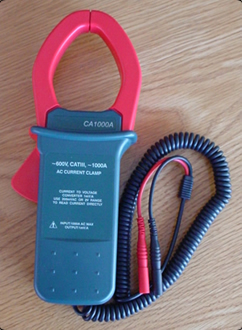

CA1000 AC Clamp Adaptor
Large 75 x 57mm Jaw Size
Measurement Range:
Bandwidth:
Output:
Output Ratios:
Basic Accuracy:
Jaw Size (ID):
Safety:
Dimensions:
Battery:
0 to 60 Amps DC & AC
40Hz to 20kHz
1mV/10mA: 1mV~2VDC or ACRMS
1mV/100mA: 1mV~600mVDC or ACRMS
1:10 And 1:100
±(2% + 2mV)
9mm
EN 61010-1 CATII
195(H) x 70(W) x 33mm, 250gm
Standard 9V Battery
0 to 600 Amps DC & AC
50 to 400Hz
1mV/1A
1:1000
±(2% + 2mV)
30mm
EN 61010-1 CATII
178(H) x 70(W) x 33mm, 290gm
Standard 9V Battery
0 to 1000 Amp AC
50 to 400Hz
0 to 1 Volt AC RMS;
1:1000
@ 50~60Hz:
0 to 399A: ±(1.5% + 2A)
400 to 1000A: ±(2% + 3A)
57mm
EN 61010-1 CATII
264(H) x 100(W) x 44mm, 400gm
No battery required
†Also available with BNC connectors for use with our range of oscilloscopes and automotive diagnostic scopes.
