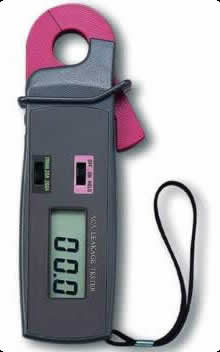

16054 - AC Leakage
Compliance Clamp
Compliance Clamp
- |
- Automotive
- |
- Data Acquisition
- |
- Electrical
- |
- Environmental
- |
- Food Safety
- |
- Mechanical Measurement
- |
- Multimeters
- |
- Test & Measurement
- |
- Temperature Monitoring
- |
- Test Accessories
- |
- Thermometers
- |
- Quickly test for Earth Leakage
- Precision 20mA Range
- 0.1mA Resolution
- Compact Size
- Simple Operation
The phase supply to many appliances is "disconnected" by an intermediate relay when the power is turned off. Therefore a conventional insulation test does nothing more than put high voltage across the power cord.
The 16054 measures earth lead leakage while the appliance is still turned on & therefore tests the condition of the whole appliance.
SPECIFICATIONS
| Measurement Ranges: | 200mA, 20A & 200 Amps AC |
|---|---|
| Resolution: | 0.1, 10 & 100mA respectively |
| Other Functions: | Data Hold |
| Overload Protection: | 300 Amps AC for 1 minute |
| Dimensions: | 180(H) x 47(W) x 35mm, 200gm |
Jaw Size: | 19mm ID |
| Battery: | Std 9V (Not included) |
| Accessories Included: | Protective Carry Case, Wrist Strap & Manual |
