2602 AC Clamp Meter
- |
- Automotive
- |
- Data Acquisition
- |
- Electrical
- |
- Environmental
- |
- Food Safety
- |
- Mechanical Measurement
- |
- Multimeters
- |
- Test & Measurement
- |
- Temperature Monitoring
- |
- Test Accessories
- |
- Thermometers
- |
- All New Design

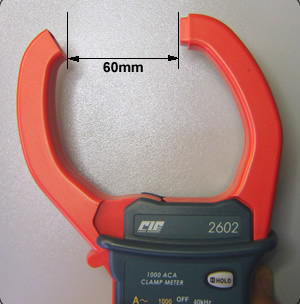

- Wide 75 x 60mm Jaw

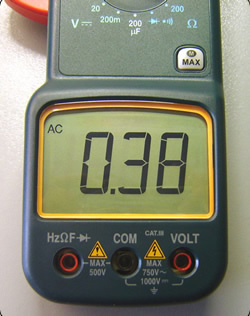

for large bus bars - Large Easy-to-Read Display
- Meets IEC1010-1 Safety Standard
SPECIFICATIONS
| Volts: |
DC 100mV to 1000V ±(0.5% + 1 Dgt)*, AC 100mV to 750V ±(1.2% + 4 Dgts) @ 50~500Hz, 1kVDC/750VRMS Overload Protection |
|---|---|
| Current: | AC 10mA to 1000A ±(1.5% + 5 Dgts) @ 50~60Hz 1200A Overload Protection |
| Resistance: | 0.1Ω to 2GΩ ±(1% + 3 Dgts) |
| Frequency: | 1Hz to 40kHz ±(0.5% + 3 Dgts) |
| Capacitance: | 100nF to 200µF ±(3.5% + 5 Dgts) |

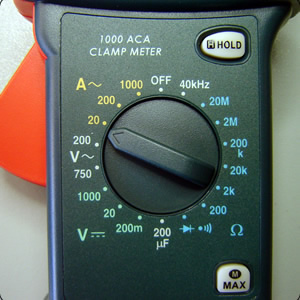

| Other Functions: | Continuity Beeper, 3V Diode Test, Max Record, Data Hold and Display Hold |
| IEC Rating: | 1010-1 CATIII 1000V |
| Dimensions: | 275(H) x 102(W) x 49mm, 540gm |
| Battery: | Std 9V Provides 100Hrs of Operation |
| Accessories Included: | Test Leads, Soft Carry Case & Battery. |
