DI6300 Digital Insulation Tester

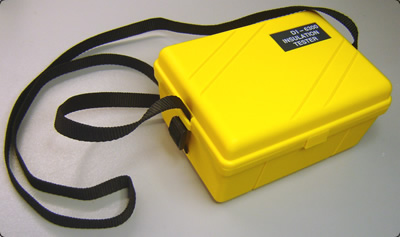

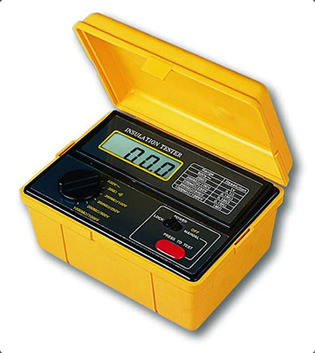

With the integral lid on it's rugged housing, the instrument's front panel is fully protected even when it's rattling around in the van!

DI6300 Digital Insulation Tester

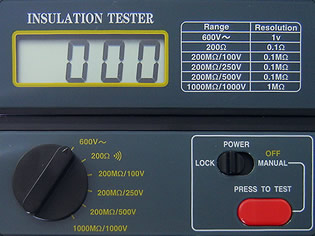

  • Large easy to read 18mm LCD
  • 4 Insulation measurement ranges
  • ACV & Ohms measurement & functions
  • High 2.55mA insulation measurement current
  • Precision 200Ω range for measurement of low resistance such as motor windings, relay coils etc.
  • Overload protection for each range
  • Automatic zero adjust & circuit discharge
  • Durable & portable protective housing

SPECIFICATIONS

Insulation Test Ranges: 200MΩ @ 100V, 200MΩ @ 250V, 200MΩ @ 500V,  1000MΩ @ 1000V
Resolution: 0.1MΩ @ 100V, 250V & 500V, 1MΩ @ 1000V
Accuracy: ±(3%Rdg + 1 Dgt)
Response Time: Max: approx 2.5 seconds
Display: 18mm, 2000 count LCD
Dimensions: 85(H) x 160(W) x 120mm, 575gm
Battery: 1.5V AA x 8 (not included)
Accessories Included: Instruction manual, insulated alligator clip leads
