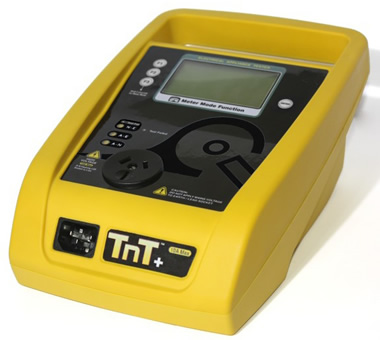

Portable Appliance Tester
  • Simplified One Button Testing
  • Test Icons & Symbols on Large LCD
  • Large Fonts During Tests Showing Results & Progress
  • Flashing Test Fail Indicator
  • Mains/Input Polarity Test on Startup
  • Impact Resistant & Flame Retardant Casing
  • Built In Carry Handle

The TNT Gen4 is an easy to use, intuitive hand held Portable Appliance Tester (PAT), designed to test for electrical safety and accuracy of 240VAC rated appliances (including RCD results on specific models). Simple one button automatic testing makes this series fast and easy to use.

The TNT series allows operators to fully comply with the
requirements of the AS/NZS 3760 Standard.

The large backlit LCD display shows easy to follow menus, meaningful icons & selectable test screens for simpler user operation.

Contents

TnT el

  • Appliance tester with leakage test
  • Instruction user guide
  • Earth bond lead 1800mm
  • IEC to 3 PIN plug test lead 500mm
  • Carry bag & locking power lead

TnT RCD

  • Same as TnT el
  • In-built RCD test module & firmware

TnT +

  • Same as TnT RCD
  • WinPATS base software
  • Interface ports (scanner, printer & keyboard)
  • USB cable (for connection to PC)
'On-start' tests range from mains supply testing, connectivity check, polarity with flashing fail indicators (also when test has failed), through to user selectable options, e.g. RCD ramp current etc. Functions vary depending on model, but the flexibility of this series suits all levels of Industry.
Advanced features include ability to extend some test functions/ times, e.g. the earth bond test to 30 seconds allowing operators to obtain proper contact with the earth of some appliances.
Tester Function Chart
WinPATS software included for TnT+ Model
TnT elTnT RCDTnT +
Meter Mode
Class I / Class II
Extension leads
Leakage Current
500V Insulation / 250V Insulation
RCD Testing
Mains Supply Test
Power Measurement
Data Connectivity to PC /
Laptop via on-board USB port
Printer Connectivity via laptop/PC
WinPATS base software
WinPATS software (optional)
Tests Performed / Specifications
Mains Supply Test
Checks Polarity and continuity of mains supply by LED indicators (A-N, A-E, and N-E). (Flashing Test Fail indicator)
CLASS 1 Earthed Appliance
Appliance Check:
Ensures appliance is plugged in and turned on.
Earth Bond Test:
200mA test current. Pass level less than 1.0Ω. Measurement: 0.01Ω to 10Ω.
Insulation Test:
500VDC / 250VDC. Pass level greater than 1MΩ. Measurement: 0.1Ω to 10MΩ. *See also Leakage Test.
CLASS 2 Double Insulated Appliance
Appliance Check:
Ensures appliance is plugged in and turned on.
Earth Bond Test:
200mA test current. Pass level less than 1.0Ω. Measurement: 0.01Ω to 10Ω.
Insulation Test:
500VDC / 250VDC. Pass level greater than 1MΩ. Measurement: 0.1Ω to 10MΩ. *See also Leakage Test.
Extension Leads
Earth Bond Test:
200mA test current. Pass level less than 1Ω. Measurement: 0.01Ω to 10.0Ω.
Insulation Test:
500VDC / 250VDC . Pass level greater than 1MΩ. Measurement: 0.1Ω to 10.0MΩ.
Continuity/Polarity Test:
250VAC check continuity and polarity of leads. Displays Pass/Fail.
Leakage Test *
Leakage Current:
0 to 30.0mA at 200 to 265V.
Earth Leakage:
240VAC Mains. Pass level 1, 2.5, 5.0mA leakage test levels with up to 10Amp load operation.
Test:
Note 1: Pass level for CLASS 1 is 5mA, Pass level for CLASS 2 is 1 mA.
Note 2: Leakage test may be performed if for any reason a standard CLASS 1 or CLASS 2 is not possible.
RCD Test
Trip Current:
2 to 500mA in 1mA steps. User selectable.
Trip Time:
0 to 3,000ms at 01sec resolution.
Current Ramp Trip Test:

0 to 500mA in 1mA increments.
Power Measurement
Leakage Current:
0 to 30.0mA at 200 to 265V.
Load Current:
0.0 to 10Amp.
Voltage:
200 to 265VAC.
Power Factor:
0 to 1.
Apparent Power:
0 to 2400VA, Power 0 to 2400W
Meter Mode®
Load Current:
0.0 to 10Amp.
Voltage:
200 to 265VAC.
Apparent Power:
0 to 2400VA.
Power:
0 to 2400W.

Meter Mode Function

Meter Mode ®, allows for quick and simple electrical measurements
e.g. measuring power consumption of a bar heater or drill to check the
ratings, test power/voltages on outlets around sites on different circuits,
confirm specifications etc.

Meter Mode features four discrete options

Volts
Amps
Watts

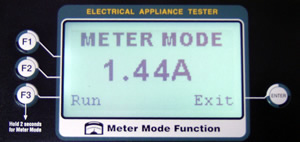

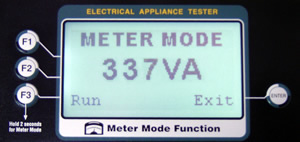

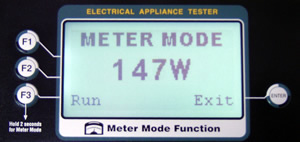

Volt / Amps

Electrical parameters are displayed on the large LCD screen as Volts in AC, Current in Amps, Power Measurement in Watts and VA in Volt/AMPS.

Meter Mode Volts
