DW6090 Single Phase Portable
Power Analyser
|



Single Phase Portable Power Analyser
NZ$681.00*
Order

SPECIFICATIONS

Volts:


Resistance:

Frequency:

Power Factor:

Watt Hours:

Power Analyser
DC: 0.1V to 600V ±(1% + 1 Dgt)
AC: True RMS 1V to 600V ±(1% + 1 Dgt)
@ 40 to 400Hz

1Ω to 19.99kΩ ±(1% + 1 Dgt)

0.1Hz to 999Hz ±(1% + 1 Dgt)

0.01 to 1* ±(1.5% + 2 Dgts)

0*1 WHr to 9999 kWHrs ±(1.5% + 5 Dgts)

  • Multifunctional True RMS Autoranging Meter
  • Measure Watts, VA, WHr, PF, Hz and more
  • Super Large LCD simultaneously displays Watts, Power Factor, Frequency, Voltage and Current
  • Measure Current by Direct Input or via a Current Clamp or CT
  • True AC Power (Watts) and Apparent Power (VA) with Hi & low Alarm Setpoints
  • RS232 Interface with PC Software (U232)
  • AC Adaptor or Battery Powered
Power Analyser

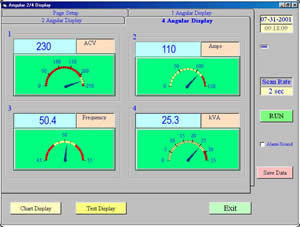

U232 Screen

Current:

  • DC
  • True RMS AC

Power:

  • Watts
  • VA

Direct

  • 10mA to 15A
  • 10mA to 15A
  • 1W to 6kW
  • 0.01VA to 9999VA

Via Clamp

  • 1A to 1000A
  • 1A to 1000A
  • N/A
  • 1W to 999.9kW

Via CT (100/5 or 1000/5)

  • N/A
  • 0.1 to 1000A
  • N/A
  • 1W to 999.9kW

Accuracy

  • ±(1% + 3 Dgts) excl. adaptors
  • ±(1% + 1 Dgt) excl. adaptors **
  • ±(2% + 2 Dgts) **
  • (1% + 1 Dgt) excl. adaptors **
** @ 110V/220V +15%, 40 to 400Hz

Other Functions:

Dimensions:

Power Supply:

Accessories Included:

Autoranging, Peak Hold and Data Hold

90(H) x 210(W) x 280mm, 1.6kg

6 x 1.5V AA Batteries (Not included) or optional 9V/500mA Adaptor

Test Leads, PC interface and U232 Software
