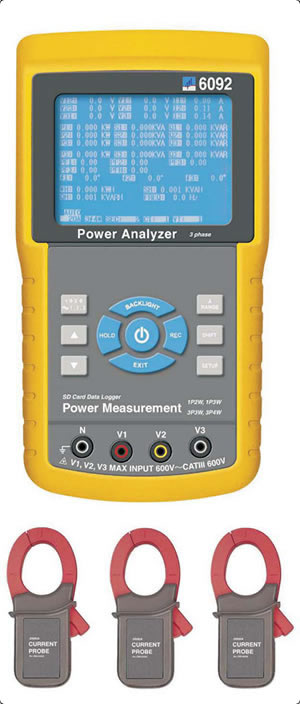

DW6092 Three Phase
Portable Power Analyser
|



3 Phase Power Analyser
NZ$2317.00*
Order

Legal and Where to Buy

Sitemap

*15% GST applicable
for sales within NZ

Power Analyser
  • Single or 3 Phase Measurements
  • 2, 3 and 4 Wire Systems
  • Stand-alone Data Logging to an SD Card
  • Date and Time Stamped Recorded Data
  • Large Informative Backlit LCD

Whether determining future power requirements, monitoring equipment specific power consumption or quantifying the results of power saving initiatives, Metermaster's 6092 Analyser/Logger with its SD card data storage, is a rugged and portable solution.

SPECIFICATIONS:

AC Voltage: 100mV to 600V ±(0.5% + 0.5V)
(Phase to Neutral and Phase to Phase)
AC Current
(via clamps):
100mA to 1200A ±(0.5% + 0.1~5A*)
AC Power: 0 to 9.999MW, MVA & MVAR ±(1% + 8W~ 80k*) (True, Apparent and Reactive Power)
*Range dependent
Programmable Input Ratios
CT:1 to 600
PT:1 to 1000
Wiring Systems:Single Phase, 2 and 3 Wire
Three Phase, 3 and 4Wire
Power Factor:0.01 to 1 ±(0.04)
Phase Angle:±180° ±1°
Frequency:45 to 65Hz ±0.1Hz
Data Logging
Sample Interval:2 seconds to 7200 seconds (2 hours)
Date/Time:Real time yy/mm/dd/hr/min/sec
Media:2G SD Card (included)
Format:CSV for Import from Excel
Other Functions:Auto and manual current ranges, Data Hold
IEC Rating:1010 CATIII 600V
Dimensions
Instrument:225(H) x 125(W) x 64mm, 1049gm
AC Clamps:210 x 64 x 33mm, 522gm (Jaw opening: 86mm)
Battery:8 xAA or (included) external power supply
Accessories Included: 4 x Test leads with Alligator Clips, 3 x 1200Amp Clamp Adaptors, 2G SD Card, Mains power adaptor, Carry Bag & User Manual.
