At Metermaster we have many test lead options.
Please feel free to contact us about your requirements.
High Quality Silicon Insulated Test Leads and Clips
- Rated to IEC 1010 Standards
- Flexible Silicon Insulation
- -60° to 180°C Rating
- Tested at up to 7400V
- Mix ‘n’ Match to Suit Your Needs
- Meter Accessories for all Applications
All too often the test leads we use every day are taken for granted. Yet it
is only the integrity of the insulation of these probes that keeps us safe
from the dangers of high voltages.
How long is it since you checked your test leads? Are you compromising
your own safety with inferior probes? Don't find out the hard way. Check
them now and if in doubt, replace them - before you get carried away.
4413 2 150 Red/Black Test Lead Pair
- 4mm right angled shrouded plug
- 2mm probe tip
- 1.5m x 1.5mm² silicon insulated cable
- 25 Amp, 1000V CAT III, 600V CAT III rating
NZ$43.00*
4213 2 150 Red/Black Test Lead Pair
- 4mm right angled shrouded plug
- 2mm probe tip
- 1.5m x 1.5mm² silicon insulated cable
- 25 Amp, 1000V CAT III, 600V CAT III rating
NZ$43.00*
|
More
|
Insulated tip prevents accidental shorts |
|

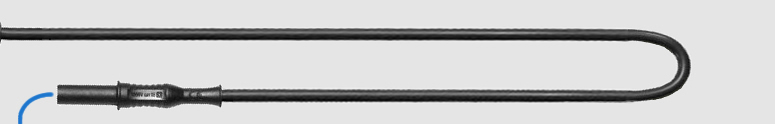

2353 100
Red/Black Patchcord Pair
- 4mm shrouded plugs
- Right angled to straight
- 1m x 1.5mm² silicon insulated
- 25 Amp, 1000V CAT III rating
NZ$35.00 pair*
|
Mix ‘n’ match probes to suit your requirements
Available in 6 colours
|
|
|
More
3034 Spade Adaptor Pair
- Better than crushing your test leads
- Easy, positive connection
- Grooved for 4.3 & 6.3 mm bolts
- 36 Amp, 33VAC, 70VDC rating
NZ$16.00 pair*
3034 Spade Adaptor Pair • Easy, positive connection
|
More
402 Long Insulated Probe
- Safer when testing around bus bars
- Very fine needle probe
- 16 Amp, 1000V CAT III rating
NZ$11.00 each*
402 Long Insulated Probe
Anti slip ring
Very fine needle probe
Removable tip shroud
|
More
|
405 Test Probe
- Easy grip with anti-slip guard
- 19 x 2mm probe tip
- 36 Amp, 1000V CAT III rating
NZ$11.00 each*
|
More
464 SMD Probe
- Very fine 0.7mm sprung tip
- Non-slip removable tip shroud
- 1 Amp, 600V CAT III rating
NZ$26.00 each*
Very fine, sprung tip SMD probe with removable tip shroud
|
More
|
6003 Insulation Piercing Grabber
- Spring tension holds and pierces
- Excellent for loom tests
- 6 Amp, 30VAC, 60VDC rating
NZ$45.00 each*
|
More
Flexible with push open pincers
|
6005 Flexible Pincer Grabber
- Holds well - even on very small pins
- Rotatable pincers minimise test lead pull
- Tested to 8000V!
- 6 Amp, 1000V CAT III rating
NZ$28.00 each*
|
More
Flexible with push open jaws
|
6007 Long Alligator Grabber
- Wide opening jaws & very positive grab
- Insulated jaw backs prevent accidental shorts
- Tested to 8000V!
- 7 Amp, 1000V CAT III rating
NZ$32.00 each*
|
More
|
5004 Large Crocodile Clip Pair
- Large 20mm bite & good strong grip
- 3 nose teeth hold small conductors too
- 20 Amp, 1000V CAT III rating
NZ$31.00 pair*
|
|
