- 6000 Count Display plus 999 Count Secondary
- Display AC Voltage or Current & Frequency Simultaneously
- VFD (Variable Frequency Drive) Mode
- 5ms Crest Capture
- True RMS AC & AC+DC Measurement
- Backlit Display

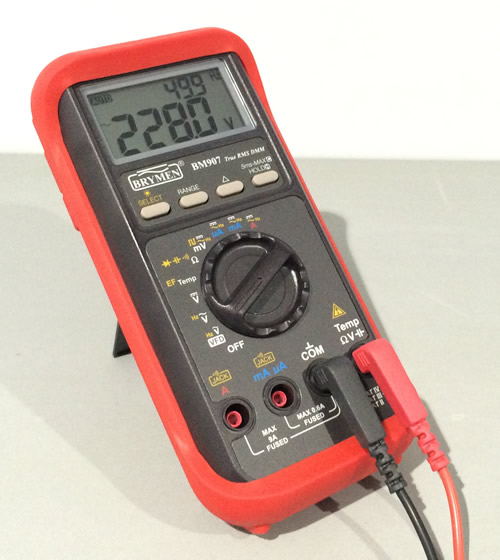

If you’re trying to make sense of measurements around a variable speed drive that’s playing up, you really need stable readings on your meter. The BM907S True RMS meter’s VFD mode, utilises high noise rejection and low pass filter circuitry at the front end, to reliably measure and display voltage and frequency simultaneously.
Add to that 5 updates per second, a 5ms crest capture mode, capacitance and logic measurements and this meter really is a problem solver!

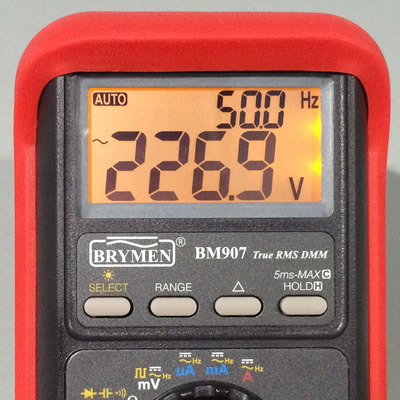

We know it’s hard enough being stuck behind a cabinet in a noisy plant, without needing to strain to see your meter, so the BM907S has a bright LCD backlight for easy reading in those not-so-accessible places you work!
…and just in case the assistant’s using your meter, it will beep and flash a warning message, if the probes are plugged into the wrong current sockets!
SPECIFICATIONS:
- Volts:
- VFD Volts:
- Current: *1
- Resistance:
- Frequency:
- Temperature: *2
- Capacitance:
- Logic Level Frequency:
- Other Functions:
- IEC Rating:
- Dimensions:
- Battery:
- Accessories Included:
-
DC 10µV to 1kV ±(0.6% Rdg + 3 Dgts)
TRMS AC 10µV to 1kV ±(1.3% Rdg + 5 Dgts) @50~500Hz - 1mV to 1kV ±(3.5% Rdg + 8 Dgts) @10~400Hz
-
DC 100nA to 9A ±(1.5% Rdg + 3 Dgts)
TRMS AC 100nA to 9A ±(2% Rdg + 5 Dgts) 50~500Hz
*1 9~15A for 30 seconds, with 5 minute cooldown - 0.1Ω to 60MΩ ±(0.8% Rdg + 4 Dgts)
- 0.1Hz to 100kHz ±(7% Rdg + 8 Dgts)
-
-50 to 1000°C ±(1% Rdg + 3 Dgts)
*2 With optional BKB32 & suitable thermocouple - 10pF to 3000µF ±(3.5% Rdg +5 Dgts)
- 5Hz to 300kHz ±(0.2% Rdg +4 Dgts)
- Non-contact voltage detection, Diode Test, Display Hold, Relative Zero, Continuity Beeper, Display backlight, V/Hz Dual Display modes, VFD-ACV+Hz high noise rejection and low pass filter circuit for reliable Variable Speed Drive voltage and frequency measurement, Auto Power-Off with disable, Audible and visible improper connection warnings, Auto/Manual Ranging selection.
- 61010-1 AC/DC CATII 1000V, CATIII 600V, CATIV 300V
- 198(H) x 97(W) x 55mm, 430gm (incl. boot)
- AAA x 2
- Test Leads, Protective Boot and Battery.
operation? Safely hold
the meter and the
probe. in one hand
on the meter’s
protective boot
