PicoConnect™ 900 Series
Use the PicoConnect 900 Series probes with any oscilloscope that supports standard 50 Ω probes, including these PicoScope products:
9300 Series
25 GHz sampling
oscilloscopes
6000 Series
real-time
oscilloscopes
Join our team, selling these products!

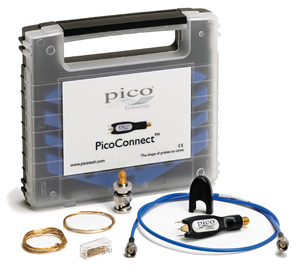

PicoConnect 900 Series single probe
  • PicoConnect 900 Series probe head
  • Precision 60 cm 085 low-loss cable
  • SMA-to-BNC adaptor (with RF and Microwave models only)
  • Quick Start Guide
  • Set of replacement gold-plated probe and ground tips
  • Two coils of solder-in gold-plated wire
  • Storage and carry case
PicoConnect 900 Series six-probe kit
  • Six PicoConnect 900 Series probe heads
  • Two precision 60 cm 085 low-loss cables
  • Two SMA-to-BNC adaptors (with RF and Microwave models only)
  • Quick Start Guide
  • Set of replacement gold-plated probe and ground tips
  • Two coils of solder-in gold-plated wire
  • Storage and carry case
More Information about the PicoConnect™ 900 Series
PicoConnect 900 Series passive probes
PicoConnect 911 20:1 960 Ω AC-coupled 4 GHz RF, microwave and pulse probe
TA274
NZ$*
PicoConnect 912 20:1 960 Ω DC-coupled 4 GHz RF, microwave and pulse probe TA275 NZ$1152.00*
PicoConnect 913 10:1 440 Ω AC-coupled 4 GHz RF, microwave and pulse probe TA278 NZ$1175.00*
PicoConnect 914 10:1 440 Ω DC-coupled 4 GHz RF, microwave and pulse probe TA279 NZ$1152.00*
PicoConnect 915 5:1 230 Ω AC-coupled 5 GHz RF, microwave and pulse probe TA282 NZ$1152.00*
PicoConnect 916 5:1 230 Ω DC-coupled 5 GHz RF, microwave and pulse probe TA283 NZ$1152.00*
PicoConnect 921 20:1 515 Ω AC-coupled 6 GHz gigabit probe TA272 NZ$1152.00*
PicoConnect 922 20:1 515 Ω DC-coupled 6 GHz gigabit probe TA273 NZ$1152.00*
PicoConnect 923 10:1 250 Ω AC-coupled 7 GHz gigabit probe TA276 NZ$1152.00*
PicoConnect 924 10:1 250 Ω DC-coupled 7 GHz gigabit probe TA277 NZ$1152.00*
PicoConnect 925 5:1 220 Ω AC-coupled 9 GHz gigabit probe TA280 NZ$1152.00*
PicoConnect 926 5:1 220 Ω DC-coupled 9 GHz gigabit probe TA281 NZ$2366.00*
PicoConnect 910 Kit: all six microwave and pulse probe heads with two cables PQ067 NZ$2366.00*
PicoConnect 920 Kit: all six gigabit probe heads with two cables PQ066 NZ$2366.00*
1.5 GHz low-impedance passive oscilloscope probe 10:1 with SMA TA061 NZ$2366.00*
Bessel-Thomson reference optical receiver filters
For use with the PicoScope 9321 O/E converter, to reduce peaking and ringing. Choice of filter depends on the bit rate of the signal under analysis
51.8 Mb/s bit rate (OC1/STM0) TA120 NZ$2366.00*
155 Mb/s bit rate (OC3/STM1) TA121 NZ$2366.00*
622 Mb/s bit rate (OC12/STM4) TA122 NZ$2366.00*
1.250 Gb/s bit rate (GBE) TA123 NZ$2366.00*
2.488 Gb/s bit rate (OC48/STM16) / 2.500 Gb/s bit rate (Infiniband 2.5G) TA124 NZ$2366.00*
Attenuators
Attenuator 3 dB 10 GHz 50 Ω SMA (m-f) TA181 NZ$2366.00*
Attenuator 6 dB 10 GHz 50 Ω SMA (m-f) TA261 NZ$2366.00*
Attenuator 10 dB 10 GHz 50 Ω SMA (m-f) TA262 NZ$2366.00*
Attenuator 20 dB 10 GHz 50 Ω SMA (m-f) TA173 NZ$2366.00*
Other optional accessories (see below)
14 GHz 25 ps TDR/TDT kit TA237 NZ$2366.00*
4 GHz power divider kit TA239 NZ$2366.00*
Active oscilloscope probes
TETRIS 1000 1 GHz high-impedance active oscilloscope probe 10:1 (with accessory kit)
TA112
NZ$2366.00*
TETRIS 1500 1.5 GHz high-impedance active oscilloscope probe 10:1 (with accessory kit) TA222 NZ$2366.00*
TETRIS 2500 2.5 GHz high-impedance active oscilloscope probe 10:1 (with accessory kit) TA223 NZ$2366.00*
800 MHz 15 V differential oscilloscope probe 10:1 TA046 NZ$2366.00*
*15% GST applicable for sales within NZ

4 GHz power divider kit contents (TA239)

  • 4 GHz 50 Ω SMA(f-f-f) 3-resistor 6 dB power divider
  • 30 cm precision coaxial SMA(m-m) cable
  • 80 cm precision coaxial SMA(m-m) cable

14 GHz 25 ps TDR/TDT kit contents (TA237)

  • 18 GHz 50 Ω SMA(m-m) within-series adaptor
  • 18 GHz SMA(f) reference short
  • 18 GHz SMA(f) reference load
