Oscilloscopes
|


Oscilloscopes
Pico's the market leader in PC Oscilloscopes
— today's alternative to traditional bench 'scopes.
  • 8 to 16 bit resolution
  • Advanced persistence display modes
  • 1 to 8 channels
  • Built-in Arbitrary Waveform Generator
  • Capture up to 1 million waveforms per second
  • 1 million point FFTs for spectrum analysis
  • 5 MHz to 12 GHz bandwidth
  • Up to 5 TS/s real time sampling
  • Up to 1 GS buffer memory
  • Mask limit testing
  • Rapid block triggering
  • USB 3 on 3000, 3000MSO, 4824 & 5000 series
Whether you are a hobbyist or a professional, our wide range of PC based digital oscilloscopes give you all the functionality of traditional test equipment (digital storage oscilloscope, spectrum Analyser, meter and data logger) along with many features not usually available in this price range.
Oscilloscope Series Channels Bandwidth Maximum Sampling Buffer Memory AWG Resolution
(Enhanced)
MSO Description
PicoScope 2000
Entry Level Oscilloscopes
NZ$266.00 to  NZ$2144.00*
2000 Series 2 or 4
(plus 16 digital
with MSO)
10~200 MHz1 GS/s8 kS
to
48 kS
A
models
only
8 bitsYes
  • Economic range of 8 bit oscilloscopes and mixed signal oscilloscopes (MSO)
  • Includes the affordable hand held range
  • All models are USB powered

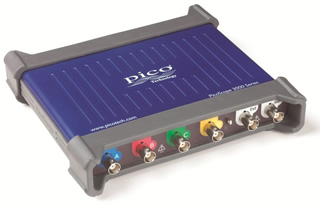

PicoScope 3000
Power, Portability and Performance
NZ$2144.00 to  NZ$2144.00*
3400 2 or 4
(plus 16 digital
with MSO)
50~200 MHz1 GS/s 512 KS
to
512 MS
D
models
only
8 bits
(12 bits)
Yes
  • General purpose 8 bit oscilloscopes combining performance and portability)
  • Fast sampling rates with class leading deep buffer memories.
  • All models have a built in function generator & are USB powered.
PicoScope 4000
High Resolution USB Oscilloscopes
NZ$2144.00 to  NZ$2144.00*
4000 2,4 or 85~20 MHz80 MS/s16 MS
to
256 MS
4226, 4227, 4262, 4824 12 bits
(16 bits)
4262:
16 bits
(20 bits)
No
  • New 8 channel model
  • Low noise and distortion provide unmatched signal fidelity.
  • Included in this range are models with 8 channels, differential inputs and IEPE interfaces.
  • All models are USB powered.
PicoScope 5000
High Performance PC Oscilloscopes
NZ$2144.00 to NZ$2144.00* for the kit
5000 2 or 4200 MHz1 GS/s8 MS
to
512 MS
B
models
only
Hardware
Resolution
+ 4 bits
No
  • USB 3.0 compatible
  • Flexible resolution, from 8 to 16 bits
  • Up to 10 GS/s equivalent-time sampling
  • Oscilloscope, probes, software, adaptors and cables in a kit

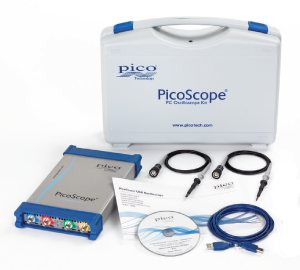

PicoScope 6000
Ultimate Performance Oscilloscopes & Digitizers
NZ$2144.00 to NZ$2144.00* Digitizer: NZ$2144.00*
Pico 6000 4250 MHz
to
1 GHz
5 GS/s 128 MS
to
1 GS
B
models
only
8 bits
(12 bits)
No
  • The fastest sampling, highest bandwidth and deepest memory of any USB oscilloscope on the market today
  • Integrated function and arbitrary waveform generator
  • Oscilloscope, probes, software, adaptors and cables in a kit
PicoScope 9300
Sampling Oscilloscopes / Digital Signal Analysers
NZ$2144.00 to  NZ$52136.00*
Pico 9000 2 or 415, 20, 25GHz15 TS/s32768 points16 bitsNo
  • Designed specifically for the complex task of analysing high speed electrical signals
  • 9311-15 and 9311-20 are designed for time domain reflectometry (TDR) and time domain transmissometry (TDT)
  • 9231-20 has a built in 8 GHz optical electrical converter that allows the analysis of optical signals
*15% GST applicable for sales within NZ
