What do I get?
- PicoScope 6407
USB Digitizer
- USB cable
- NZ AC adaptor
- Tough carry case
- PicoScope oscilloscope software
- Software
development kit
- Free software updates
4 Channels
5 GS/s real time sampling
Built in Function and Arbitrary Waveform Generators
1 GHz Bandwidth
USB connected
1 GS buffer size

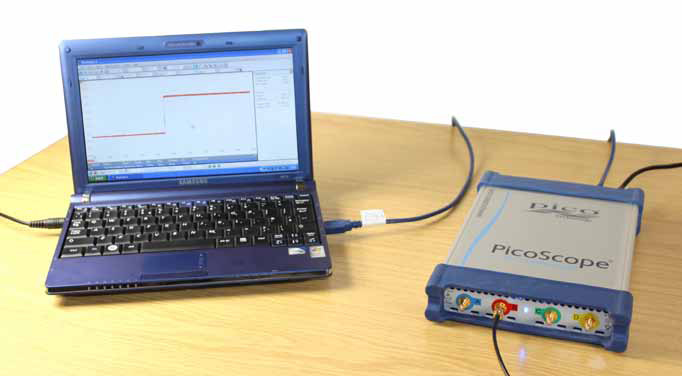

The PicoScope 6407 Digitizer is a compact USB plug in device that turns your PC or laptop into a 4 channel, high speed digitizer.
With a PicoScope 6407 you can easily digitize a 1 GHz sine wave with a timing resolution of 200 ps.
Huge
Buffer Memory
Your PicoScope 6407
Digitizer has a memory
depth of one billion samples.
Other digitizers have high
maximum sampling rates,
but without the deep memory of
the PicoScope 6407 they can't
sustain these rates on long timebases.
Your PicoScope 6407 can sample at 5 GS/s at timebases all the way down to
20 ms/div, giving a total acquisition time of 200 ms. If that's not enough, the driver
supports streaming mode for capturing unlimited gap free data directly to your PC's RAM or hard disk at over 10 MS/s.
The large buffer enables the use of segmented memory. Each captured waveform segment is stored in the buffer so you can rewind and review
thousands of previous waveforms. No longer will you see a glitch on the screen only for it to vanish before you stop the scope.
Advanced triggers
As well as the standard range of triggers found on all oscilloscopes, your PicoScope 6407 offers a comprehensive set of advanced triggers including pulse width, windowed and dropout triggers to help you capture the data you need.
USB connected, Why make things difficult?
Many digitizers use complicated, and often expensive, interfaces to connect the digitizer to your PC. The PicoScope 6407 doesn't.
Your PicoScope high speed digitizer simply connects to a USB port on any compatible Windows based PC or laptop. So there's no
need to buy a separate interface or waste time dismantling your PC to connect the digitizer.
(The ability to just plug in your digitizer to a USB port, along with the small size and weight of the PicoScope 6407,
also means that you can take your PicoScope Digitizer with you, giving you access to a high speed digitizer wherever you are.)
More Than Just a Digitizer
Pico are committed to providing value for money. That's why when you buy a PicoScope 6407 USB Digitizer you don't just get a digitizer.
Using the power of the supplied PicoScope software you can use your PicoScope 6407 as a 4 channel, 1 GHz oscilloscope with a voltage range
of -100 mV to +100 mV. Alternatively you can use the spectrum Analyser function in PicoScope for recording measurements in the frequency domain.
But that's not all… Your PicoScope 6407 also includes a built in function generator and an arbitrary waveform generator (AWG)
with a 16,000 sample buffer.
Why Pay More?
At Pico they don't do “optional extras”. Other companies may think that you should pay for high end features such as mask limit testing, serial decoding, advanced triggering, automatic measurements, math channels, XY mode, digital filtering and segmented memory. We don't. When you buy a PicoScope Digitizer everything is included in the price.
Free software development kit
Your PicoScope Digitizer comes with a software developement kit (SDK) that includes drivers for Windows based PCs and example code for various
programming languages and third party software such as LabVIEW. Using the SDK you can develop your own programs to collect and analyse data from the digitizer.
Power, Performance, Portability
With 4 channels, 1 GHz bandwidth, 1 GS buffer size and 5 GS/s real time sampling, a USB connected PicoScope 6407 Digitizer gives you the power, performance and portability you need at a price you can afford.
PicoScope 6407 Digitizer Specifications |
Oscilloscope Vertical |
Model | PicoScope 6407 (PP795) |
Bandwidth (-3dB) | 1GHz |
Rise time (calculated) |
One channel in use: 0.7 ns Two channels in use: 1.0 ns 3 or 4 channels in use: 1.4 ns |
Input Channels | 4 |
Vertical resolution | 8 bits |
Enhanced vertical resolution | 12 bits |
DC Accuracy | ±3% |
Input sensitivity | 20 mV/div |
Input impedance | 50 Ω 2% |
Input type | SMA |
Input coupling | DC |
Input ranges (full scale) | ±100 mV |
Overvoltage protection | ±2V (DC + Peak AC) |
Triggers |
Basic triggers | Rising, falling |
Advanced triggers |
Edge: single edge or dual edge; adjustable hysteresis
Pulse width: negative or positive pulse; wider or narrower than a specified width
Window: entering or leaving a voltage range
Dropout: inactivity over a user defined time interval
Window dropout: signal does not enter or exit a voltage range for at least a set time
Interval: time between two edges is greater or less than a set time, or inside/outside a time range
Logic level: arbitrary logic state of Channels A to D and AUX
Runt pulse: crosses one threshold but not the other
|
Trigger Modes | Edge, pulse width, dropout, interval, logic, delayed |
Maximum trigger rate | Up to 10,000 waveforms in a 20 ms burst |
Trigger sources | Channels A to D, AUX |
Trigger level | Adjustable over whole of selected voltage range |
Re arm time | Less than 1µs on fastest timebase |
Maximum pre trigger delay | 100% of capture duration |
Maximum post trigger delay | 4 billion samples |
Arbitrary Waveform Generator |
Sample rate | 200 MS/s |
Buffer size | 16,384 samples |
Resolution | 12 bits |
Bandwidth | 20 MHz |
Rise time (10 to 90%) | 10 ns, typical |
Environmental |
Operating environment Temperature range |
0°C to 40°C (20°C to 30°C for quoted accuracy) |
Storage environment Temperature range Humidity |
-20°C to +60°C 5% to 95% RH, non condensing |
IP rating | IP 20 |
Physical Dimensions |
Dimensions | 255 x 170 x 40mm (approx 10 x 6.7 x 1.6in) |
Weight | <1kg (approx 2.2lb) |
|
Oscilloscope Horizontal |
Maximum sampling rate (single shot) |
One channel in use: 5GS/s Two channels in use:2.5GS/s (using A+C, A+D, B+C, B+D) 3 or 4 channels in use:1.25GS/s |
Maximum sampling rate (continuous streaming mode) |
1 MS/s using PicoScope >10 MS/s using the supplied SDK (PC dependent) |
Buffer memory (shared between active channels) | 1GS |
Waveform buffer | Up to 10,000 waveforms |
Timebase accuracy | ±5ppm |
Dynamic Performance (typical) |
Crosstalk DC to 100 MHz 100 MHz to 1 GHz | 100:1 30:1 |
Step response | ±3% after 3 ns, typical |
Noise | <0.5 mV RMS |
Auxiliary Trigger/Reference Clock Input (AUX) |
Input type | Rear panel BNC |
Input impedance | 50 Ω ±1% |
Input coupling | DC |
Voltage range | ±5 V |
Bandwidth (AUX TRIGGER) | 25 MHz |
Input threshold | ±1 V |
Overvoltage protection | ±5 V |
Frequency range (CLOCK INPUT) | 5 MHz to 25 MHz |
Signal generator |
Standard output waveforms |
Sine, square, triangle, ramp (up/down), sin (x)/x, Gaussian, half sine, white noise, PRBS, DC level |
Frequency range | DC to 20 MHz |
Output frequency accuracy | ±5 ppm |
Output voltage range (peak to peak) | ±250 mV to ±2 V (into high impedance load) |
Offset voltage adjustment | ±1 V (maximum combined output ±2.5 V) |
Amplitude flatness | 1.5 dB DC to 20 MHz, typical |
Connector type | Rear panel BNC |
Overvoltage protection | ±5 V |
Sweep modes | Up, down, dual with selectable start/stop frequencies and increments |
PC Requirements |
Minimum |
Processor: Pentium II processor, or equivalent
Memory: 64 MiB (XP) / 512 MiB (Vista) / 1 GiB (Windows 7 and 8)
Operating system: 32 or 64 bit edition of Microsoft Windows XP SP2, Vista, Windows 7 or Windows 8 (not Windows RT)
Ports: USB 1.1 compliant port
|
Recommended |
Processor: 2GHz Pentium IV processor, or equivalent
Memory: 256MB (XP) / 1GB (Vista / Win 7 & 8)
Operating system: 32 or 64 bit edition of Microsoft Windows XP SP2 (or above), Vista, Windows 7 or Windows 8 (not Windows RT)
Ports: USB 2.0 compliant port
|
|
Software |
PicoScope 6 for Windows | |
Linux drivers | 32 bit drivers |
Software development kit | Includes drivers and example code for various programming languages including C, C#, Excel and LabVIEW. |
General |
Power supply |
NZ 12V/3.5A external adaptor supplied |
Compliance |
FCC, CE,RoHS compliant |
Accessories Included |
Additional hardware | USB 2.0 cable, carry case, user manuals |
Software | PicoLog & PicoScope 6 CD ROM |
Documentation | User's guide, Programmer's guide & Installation guide |
